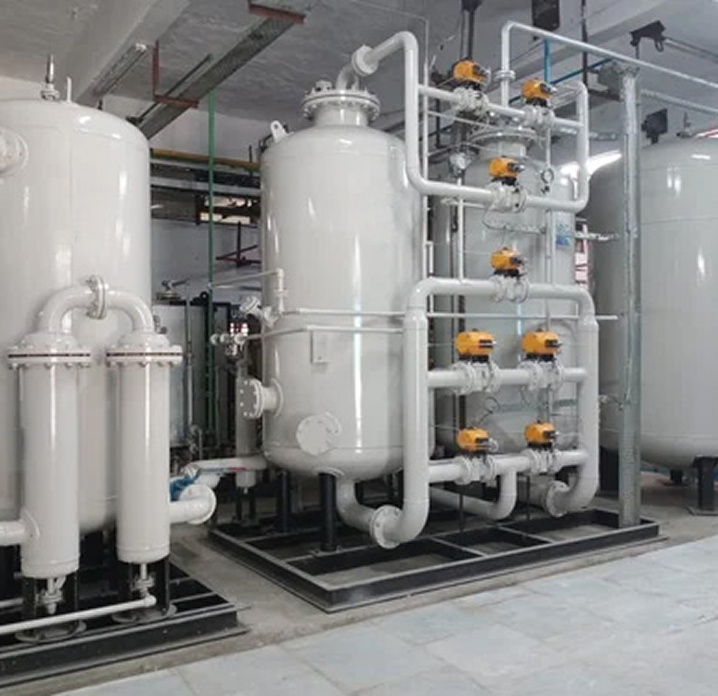

Oxygen/Nitrogen Gas Plant

Description

KVK Corporation's Oxygen/Nitrogen Gas Plant is based on cryogenic air separation and is designed to produce Oxygen and Nitrogen in different operating modes. The catalogue highlights high gas purity, low power consumption, stable operation, efficient cooling, liquid Nitrogen withdrawal and cylinder-filling facilities.

Oxygen/Nitrogen Gas Plant

Key Features

  • Design features enabling simultaneous Oxygen and Nitrogen production.
  • Highly efficient Expansion Engine for rapid and adequate cooling.
  • High standard of gas purity and low power consumption.
  • Special bypass valve for quick production and better cooling.
  • Electronic temperature indicating/scanning system.
  • Pressure differential gauges and liquid-level indicators with stainless-steel control panel.
  • High-quality Perlite insulation to prevent cold losses.
  • Liquid Nitrogen withdrawal facility.
  • Pump for filling Oxygen with separate Nitrogen pump.
  • Heavy-duty four-stage air compressor suitable for diesel-generator or normal 415/440 V, 50-cycle power supply.
  • No bulky gas holder required.
  • Industrial refrigerator/chilling plant with air-cooling facility before and after the drier battery.
  • Low maintenance cost.
  • Safe and easy to operate.
  • Online Oxygen purity analyser.
  • Non-lubricated cross-head liquid pumps for Oxygen pumping.
  • Facility for PPM-grade dry Nitrogen gas.
  • Minimum Oxygen loss through waste Nitrogen to achieve optimum production.

Technical Data

Name of the unit80 M³/Hr150 M³/Hr250 M³/Hr300 M³/Hr400 M³/Hr
Air Compressor Motor150 HP215 HP340 HP450 HP300 HP x 2
Expansion Engine Motor10 HP10 HP20 HP20 HP20 HP
Chilling Plant Motor3.5 HP3.5 HP7.5 HP7.5 HP10 HP
Water Pump Motor5 HP5 HP10 HP15 HP20 HP
Cooling Tower Motor5 HP5 HP7.5 HP7.5 HP10 HP
Liquid Oxygen Pump Motor5 HP7.5 HP10 HP10 HP10 HP
Liquid Nitrogen Pump Motor—5 HP7.5 HP7.5 HP7.5 HP
Defrosting Heater9 KW9 KW9 KW9 KW9 KW
Molecular Battery Heater24 KW24 KW36 KW42 KW42 KW

Specifications80 M³/Hr150 M³/Hr250 M³/Hr300 M³/Hr400 M³/Hr
Cylinder filling manifold (O₂)10 x 1015 x 1524 x 2430 x 3032 x 32
Buffer manifold (O₂)66101212
Cylinder Filling Manifold (N₂)—5 x 510 x 1010 x 1012 x 12
Cooling Water (re-circulated)20 m³/hr25 m³/hr40 m³/hr60 m³/hr65 m³/hr
Make-up water (Approx.)4 m³/day5 m³/day5 m³/day7 m³/day8 m³/day
Max. Individual item weight6 Ton7.5 Ton10.5 Ton11.5 Ton14 Ton
Gross Weight (Approx.)25 Ton30 Ton40 Ton42 Ton45 Ton
Assembly Height9.2 Meter9.2 Meter9.3 Meter9.3 Meter9.3 Meter
Area required200 sq.mtr.300 sq.mtr.300 sq.mtr.400 sq.mtr.600 sq.mtr.
Power consumption1.4 unit/m³1.0 unit/m³0.95 unit/m³1.0 unit/m³1.0 unit/m³

Production Data – 150 M³/Hr Reference Plant

Production Cycle – I: Oxygen-gaseous-dry-99.6% and above purity-150 M³/Hr.; Nitrogen-gaseous-96-98% purity - waste product.

Production Cycle – II: Oxygen-gaseous-dry-99.6% and above purity-135 M³/Hr.; Nitrogen-gaseous-99.9% purity-150 M³/Hr. (Nitrogen Compressor required for filling this Nitrogen into Cylinders - at extra cost.)

Production Cycle – III: Oxygen-gaseous-dry-99.6% and above purity-135 M³/Hr.; Nitrogen liquid 20 to 25 Ltrs. Per hour purity 99.9%

Production Cycle – IV: Oxygen-gaseous-dry-99.6% and above purity-125 M³/Hr.; Nitrogen gaseous dry-Less than 10 PPM purity-35 M³/Hr.

Notes: Start up time required post defrost will be approximately 6 hours. Defrosting of 8 hours is required once a year. All internal equipments and pipeline in ASU are of Copper and Brass. Standard discharge pressure of Liquid Pumps is 165 kg/cm². Power consumption indicated in the above chart is based on Oxygen Production only and includes all auxiliaries. The ASU is internally insulated with perlite powder.
